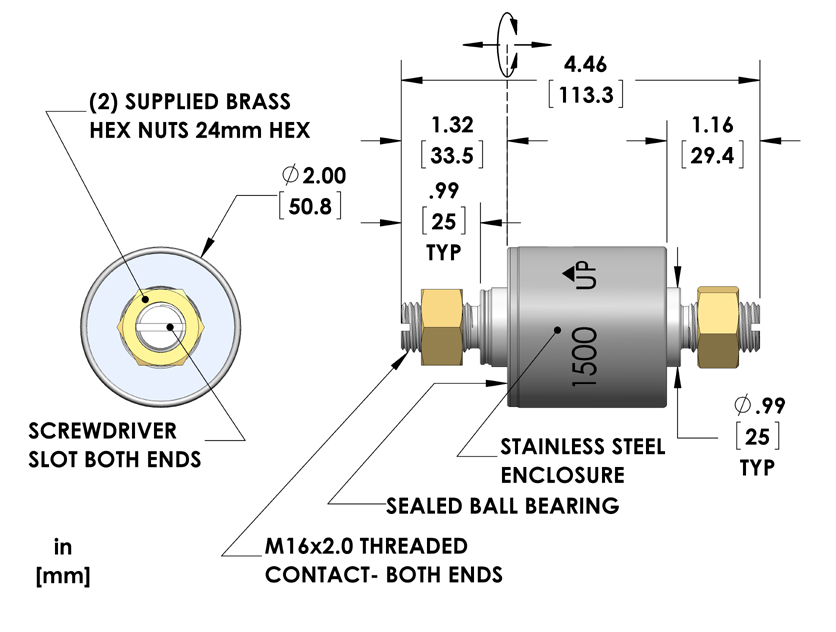

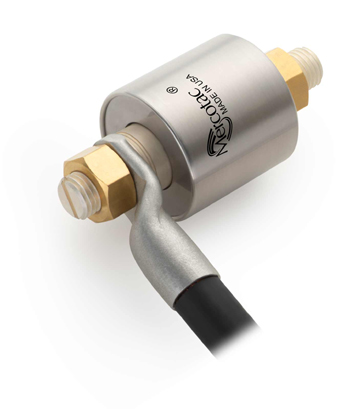

Model 1500
One Conductor,
500 Amp

2 hex nuts included as shown

Available with external dust seal (Model 1500-1)
Available with stainless steel ball bearing (Model 1500-SS)

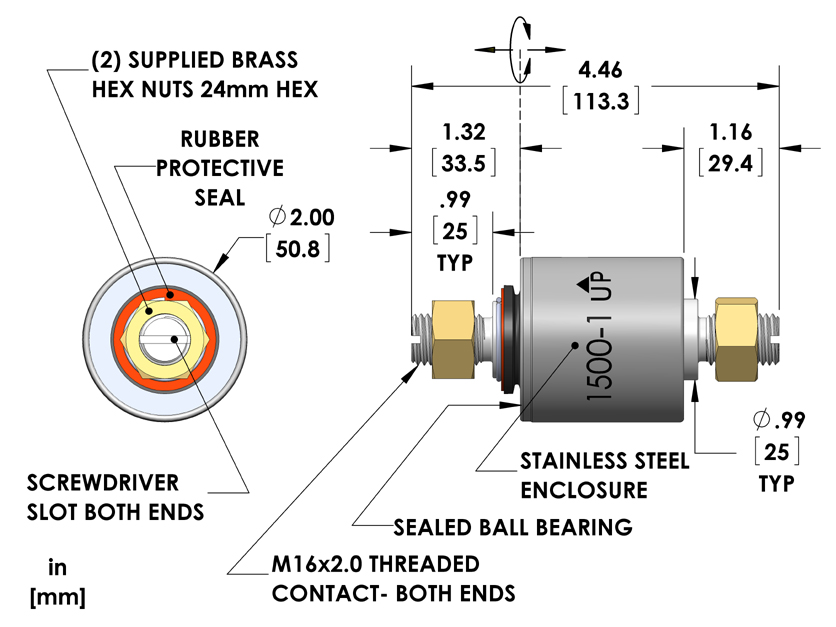

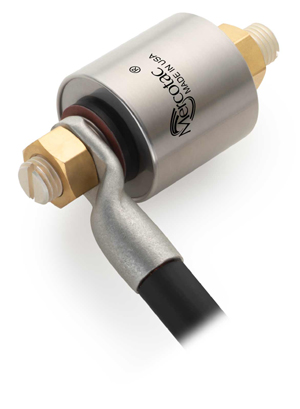

Model 1500-1
One Conductor,
500 Amp
with dust seal

2 hex nuts included as shown



Available with stainless steel ball bearing (Model 1500-1-SS)

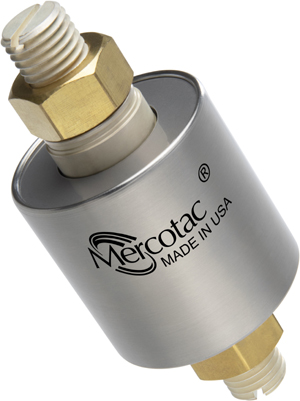

Mercotac model 1500 series are ideal connectors for high-power applications such as on plating electrodes and welding cable reels that require more power than the smaller Mercotac model 1250 series connectors. They come standard with a stainless steel housing. Available with stainless steel ball bearing (1500-SS or 1500-1-SS) (recommended for wet or corrosive environments).
Model No. Terminals Voltage
AC/DC
Max
Amp
Rating
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
1500 1 N/A 500 200

<1m

300 140 (60) /-20(-29) 750 N/A
1500-SS 1 N/A 500 200

<1m

300 140 (60) /-20(-29) 750 N/A
1500-1 1 N/A 500 200

<1m

300 140 (60) /-20(-29) 750 N/A
1500-1-SS 1 N/A 500 200

<1m

300 140 (60) /-20(-29) 750 N/A

“-1” designator indicates an external dust seal
“-SS” designator indicates stainless steel ball bearing

Safety Note: The stainless steel housing of the 1500 series Mercotac connector at higher voltages is electrically “hot” to the internal conductor.

 Model 1500 Accessories

Model 1500 Connections

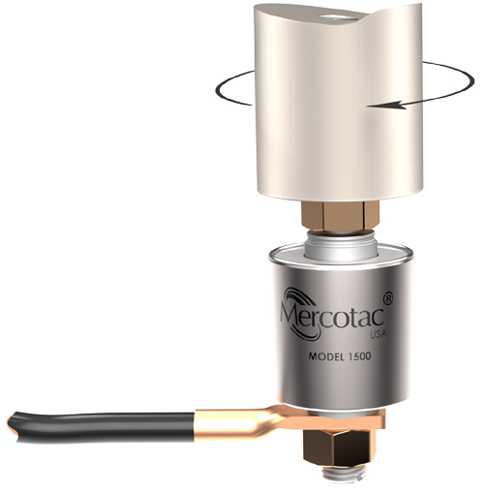

 Model 1500 Suggested Mounting Methods

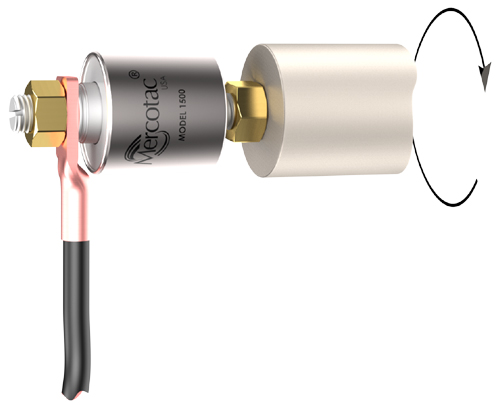

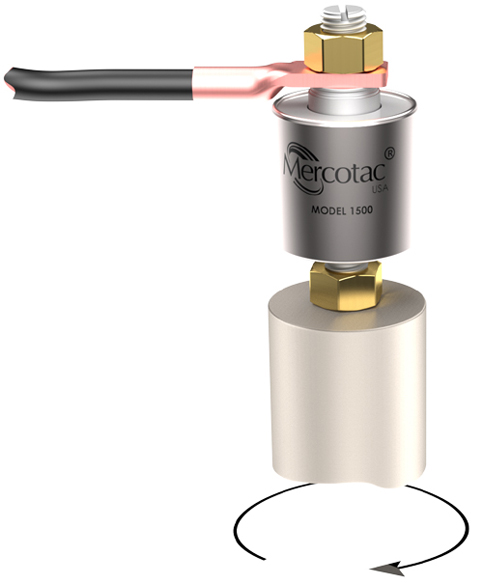

Model 1500 is typically mounted by the threaded stud on either end or by the steel body using a set screw.  When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Typical Body Mount Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
1500, et al 2.003″    (50.9) 2.50″    (63.5)

Typical Threaded Contact Mount

1500 (metric)  M16 X 2.0 1.45″   (36.8)
*Inch (mm) Tolerance Ø    +.001″ (+.025)
     -.000″ (-.000)











Installation Notes:

  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005″ (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
