Model 205
Two Conductors,
4 Amps


High-speed model available (205-H)
Low-torque/low-temp. models available (205-L)
Available with stainless steel ball bearing (205-SS)

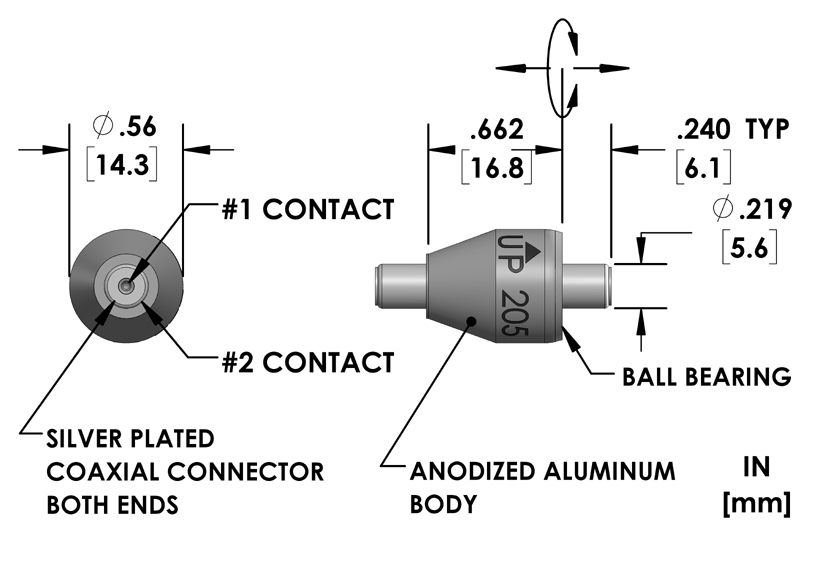

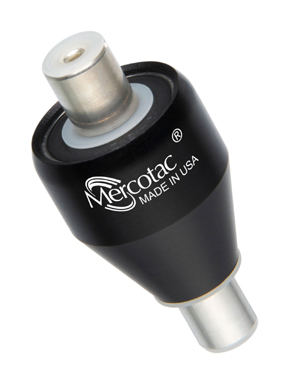

Mercotac model 205 is ideal for two-wire applications, such as thermocouples, strain gages, eddy current test devices, and wind turbine blade sensors, due to its compact size, quality signal connection, low torque and low cost.
Model 205 replaces the old model 590 for Leslie speakers and Hammond organs.
Model No. Terminals Voltage
AC/DC		 Amp
Rating
@240VAC		 Max.
Freq.
MHz		 Contact
Resistance		 Max.
RPM		 Temp
Max. F (C) /
Min. F (C)		 Rotation
Torque (gm-cm)		 Circuit
Separation
205 2 0-250 4 200

<1m
2000 140 (60) /45(7) 75

>25M
205-SS 2 0-250 4 200

<1m
2000 140 (60) /45(7) 75

>25M
205-L 2 0-250 4 200

<1m
1200 140 (60) /-20(-29) 20

>25M
205-LS 2 0-250 4 200

<1m
1200 140 (60) /-20(-29) 75

>25M
205-H 2 0-250 4 200

<1m
3600 140 (60) /45(7) 35

>25M
205-HS 2 0-250 4 200

<1m
3600 140 (60) /45(7) 35

>25M

“SS” designator indicates stainless steel ball bearing (recommended for wet or corrosive environments)
“L” designator indicates low torque / low temp.
“LS” designator indicates low temp. & stainless steel ball bearing
“H” designator indicates high RPM
“HS” designator indicates high RPM & stainless steel ball bearing

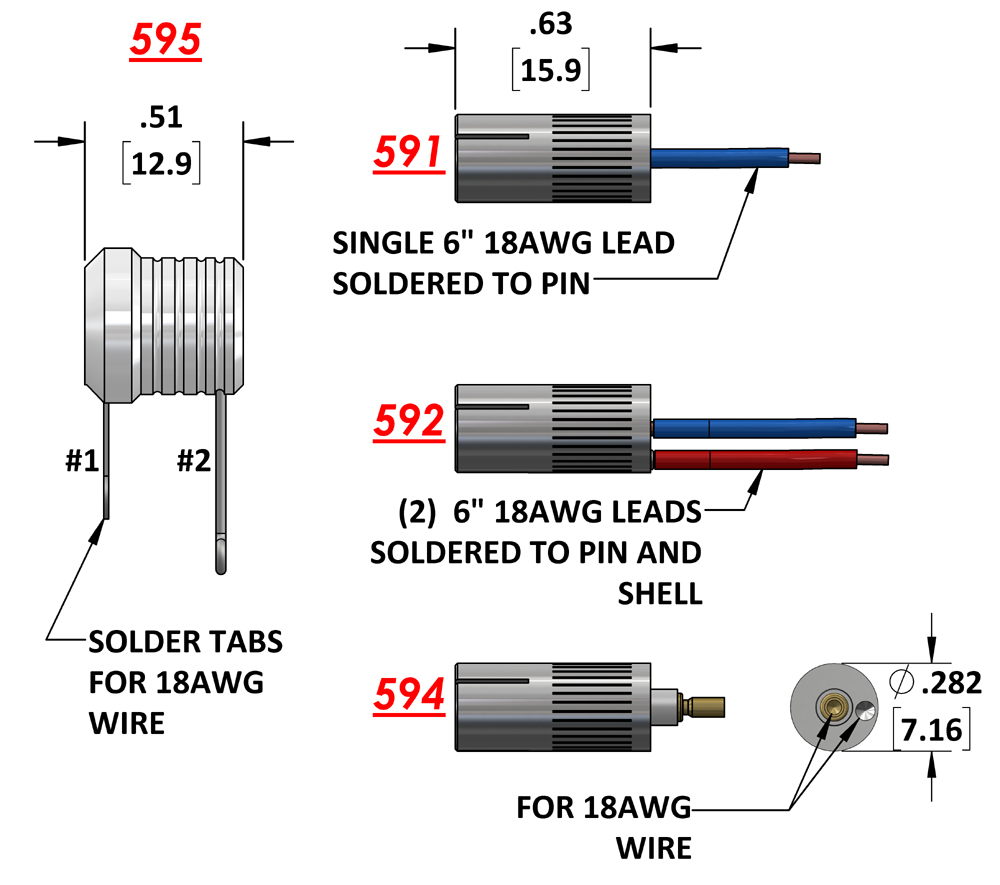

 Model 205 Accessories

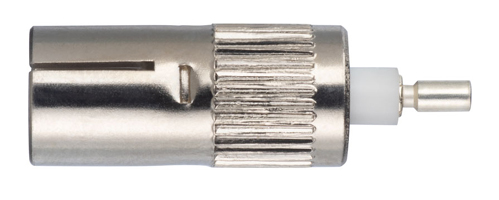

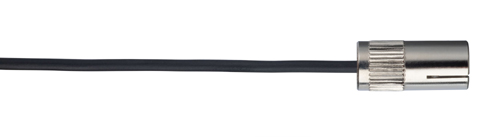

592
two contact receptacle
w/ 6″ wires

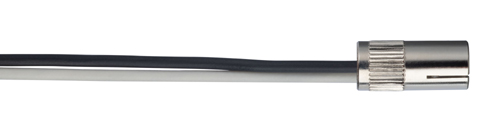

(18 AWG)		 591
two contact receptacle
w/ one 6″ wire
(18 AWG)		 594
two contact receptacle
w/ two solder holes
for 18 AWG wires		 595

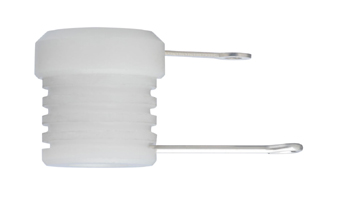

two contact cap
w/ two solder lugs
Receptacle used for mounting to rotating device.
Accessories are required for wire connections.  Order Separately.
 Model 205 Connections

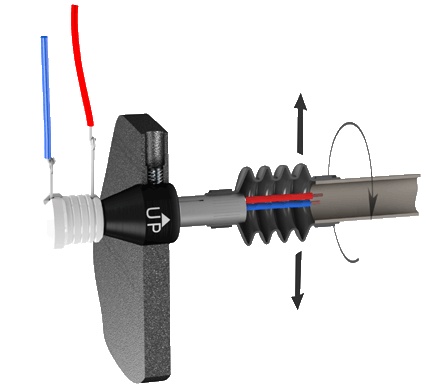

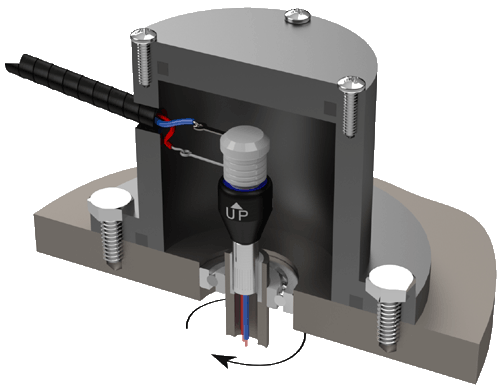

 Model 205 Suggested Mounting Methods
Model 205 is typically mounted by the knurled metal receptacle, which is press-fit into the rotating member of the machine.  When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Receptacle Mount Hole Dimensions
MODEL HOLE DIAMETER (Ø) * DEPTH
591, 592, 594 .283″    (7.19) .35″    (8.89)
*Inch (mm) Tolerance Ø    +.001″ (+.025)
     -.000″ (-.000)










Installation Notes:

  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005″ (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
