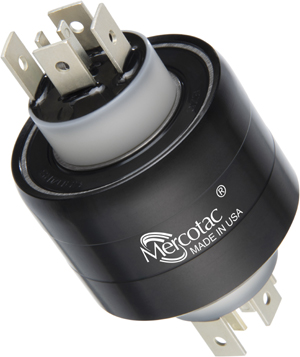

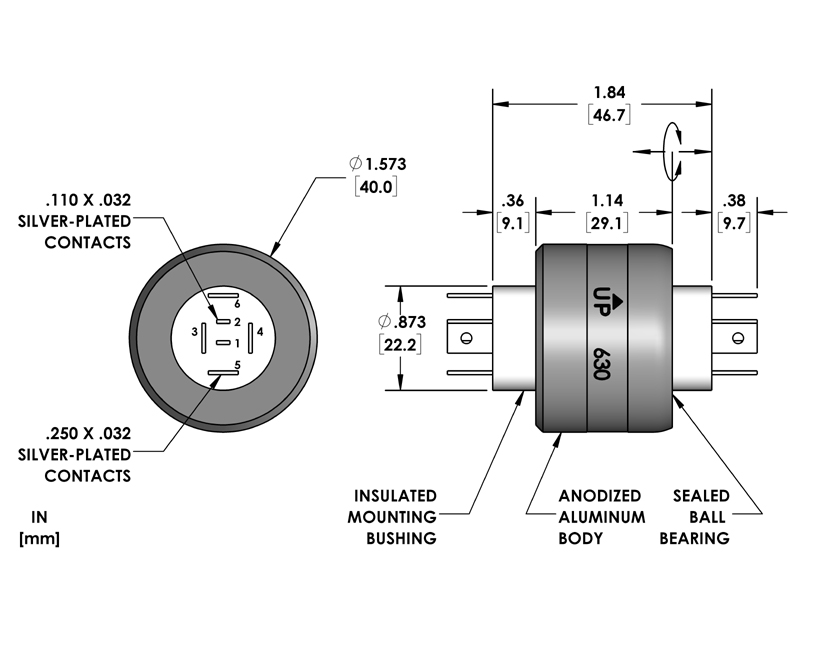

Model 630
Six Conductors,
2@4amps, 4@30amps

Disconnects included
(4 sm., 8 lg.)
Boot Kit available
Available with stainless steel ball bearing (630-SS)


Model No. Terminals Voltage
AC/DC
Amp
Rating
@240VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
630 6 0-250 2@4/4@30 100

<1m

300 140 (60) /-20(-29) 700

>25M

630-SS 6 0-250 2@4/4@30 100

<1m

300 140 (60) /-20(-29) 700

>25M

“SS” designator indicates stainless steel ball bearing  (recommended for wet or corrosive environments)

 Model 630 Accessories
55110
22 – 18 AWG (qty. 4 included)
55253
Shrink Tube (qty. 4 included)
55252
Terminal 16 – 14 AWG
(qty. 4 included)
55251
Terminal 16 – 14 AWG
(qty. 4 included)
57630
Boot Kit for dust and splash protection
IP51

Terminals for other wire gauges available.
(22-18 AWG and 12-10 AWG)

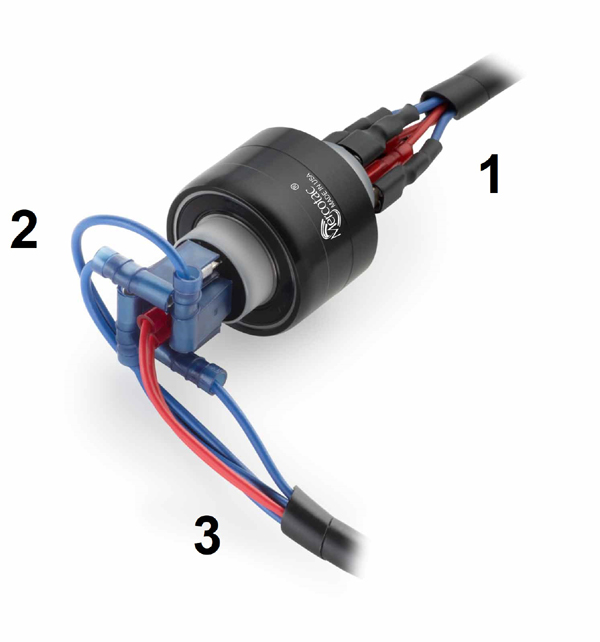

 Model 630 Standard Wire Connections

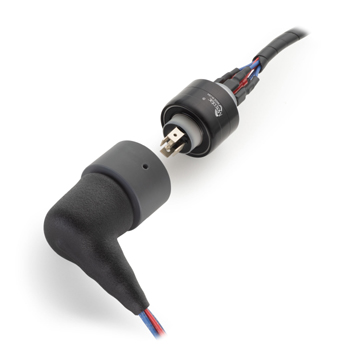

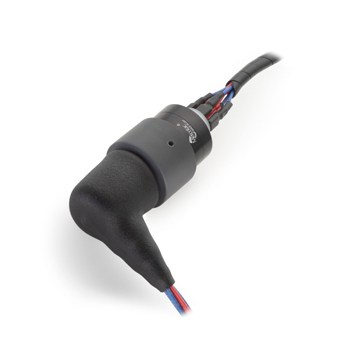

 Model 630 Wire Connections With Optional Boot Kit
 Model 630 Suggested Mounting Methods
Model 630 is typically mounted by either the black body or the white plastic bushing on either end using a set screw.  When mounting horizontally, mount the Mercotac so the body of the connector rotates.

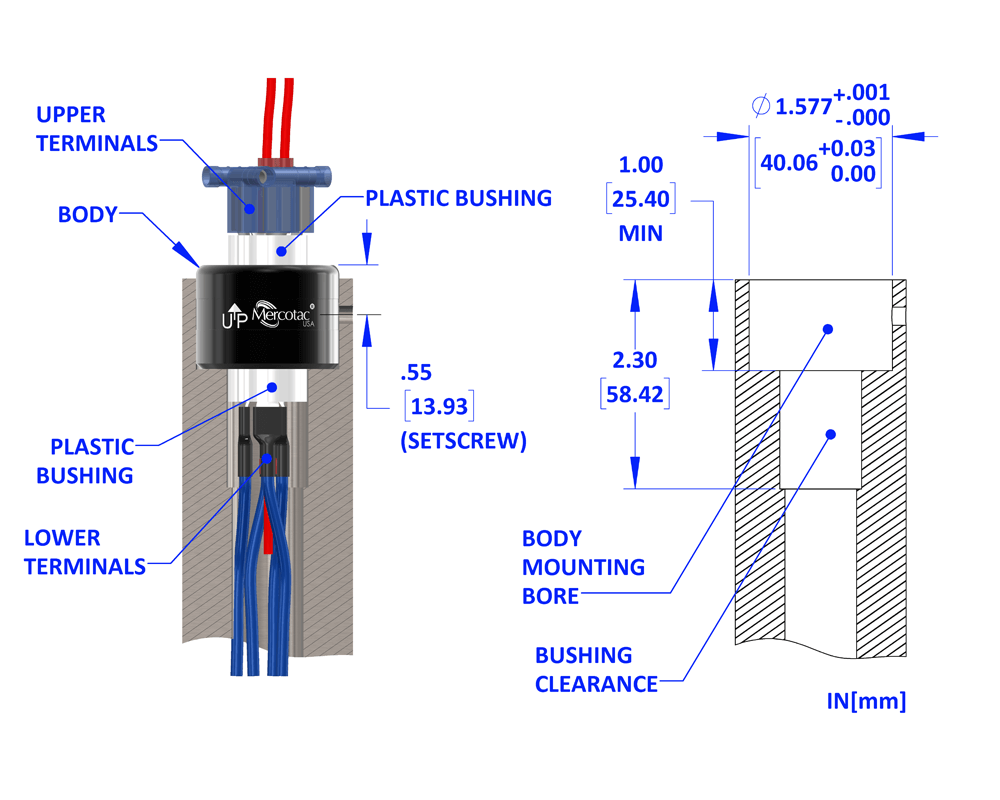

Typical Body Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
630, et al 1.575″    (40.00) .80″    (20)

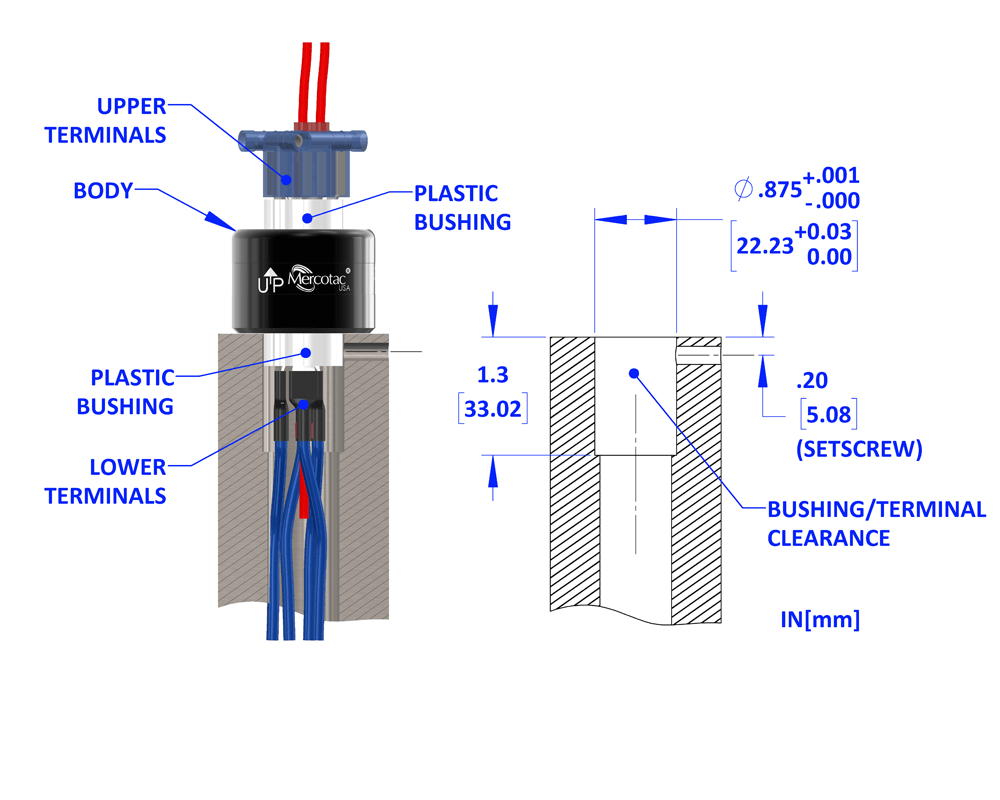

Typical Bushing Mount Hole Dimensions
630, et al .875″    (22.23) .40″    (10)
*Inch (mm) Tolerance Ø    +.001″ (+.025)
     -.000″ (-.000)














Installation Notes:

  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005″ (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
